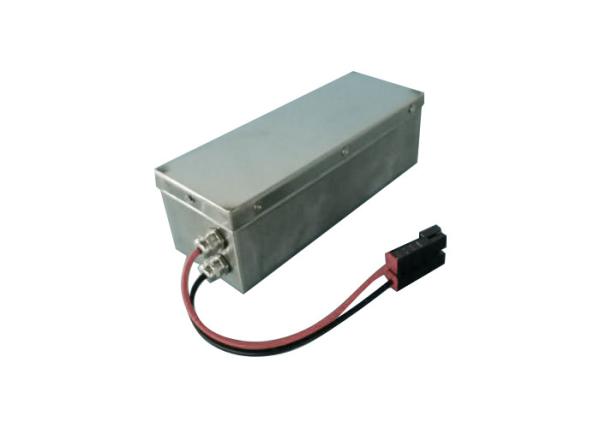

High Capacity Rechargeable Batteries 24V 10AH , Industrial Deep Cycle Battery

Name : Industrial Lithium Batteries

Model : 24V/10AH

L x W x H : 182mm*78mm*176mm

Working environment : -20°C-60°C

Charge cut-off voltage : 29.2V

Continuous working current : 5A

Place of Origin : Changsha, China

Brand Name : HYZZ

Certification : ISO9001, CE, CB, UN38.3

Packaging Details : foam, wooden box / foam, carton, tray

Delivery Time : 22 days

Payment Terms : L/C, T/T

Supply Ability : 10,000 PCS per month

Contact Now

High Capacity Rechargeable Batteries 24V 10AH , Industrial Deep Cycle Battery

Model: 24V/10AH

Specification: 182mm*78mm*176mm

Parameters: working temperature -20°C-60°C, lithium iron phosphate battery, continuous working current 5A, 4A charging, instantaneous maximum current 30A (2S), Anderson interface, charging upper limit 29.2V, discharge cut-off 19.2V, stainless steel housing, two groups Series 96V use, weight 48KG.

Application
* UPS System
* Security System
* Telecommunication Equipment
* Electric Tools and Electric Toys
* Portable Television and Video Equipment
* Portable Measuring and Medical Electronic Instruments
* Lighting System, Emergency
* Power station and telecom station

Features
Full automatic transition of CC, CV and Float/cut-off
Precise limit of voltage & current, guanrantee fully charged and voild over charge
Protections: Over current, over voltage, short circuit and reverse polarity
Current & voltage display, two LED indicators, aluminium, robust, elegant and hard, endurable
CE & C-Tick Certificate, safety, high quality
Patent Pending, 2-year Warranty
PFC

Number HY00064
Version A0

HYLF/24/10-001

Battery pack specification

Date

2019-5-7

1.Basic characteristics

Product picture

Product name

Industrial lithium battery

Batteries:-3.2V5AHBattery: lithium iron phosphate cylinder - 3.2V5AH

Shell material: stainless steel

product code

HYLF/24/10-001
L x W x H 182mm*78mm*176mm
Rated voltage 25.6VSeries structure
Rated Capacity 10Ah
Serialization 2P8S

Internal resistance

≤100mΩ
Discharge cutoff voltage 19.2V

Shell color

□ Sub black

□ Bright gray

□ +Fruit green + bright gray two-color

□ White

□ Blue thermoplastic film

Charging and discharging interface

□ Wall terminal

☑ Anderson

□ Navigation plug

□ Positive and negative lines

□ Pole

□ Hardware contact

Charging protection voltage 28.8V

Max.charging voltage

29.2V

Max. charging current

4A

Maximum discharge current

30A

Peak current

50±2A 2S

Rated discharge current

5A
Charging method CC/CV

weight

2.8Kg

Operating temperature

Charging

0~45℃

Discharge

-20~55℃

60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months

-10~35℃

C1 Cycle life

Cycle life

1500 Times

price RMB:¥ 00.00

Delivery period

25 Working day
