Brand Name : Pinsheng
Model Number : PSW2023010605
Place of Origin : Hunan, China
Weight : 20kgs, 20kgs
The charging ratio : 50A
The discharge rate : 100A
Storage Type : dry, cool and ventilation
Anode Material : LFP, LFP
Application : Home Appliances, Solar Energy Storage Systems, Solar energy storage system
Diamention : 330mm(L)x16mm(W)x173mm(T)
Discharging Limit Voltage : 218.8V
Capacity : 100AH
Cycle life : >3000 Cycles(80% DOD@C2, 25℃)
Certification : CE ROHS MSDS UN38.3 ISO9001, CE
OEM/ODM : Accepatable
Packaging Details : One Battery One Wooden Case
Warranty : 3years
Chargeable : Yes
Port : Shenzhen
Supply Ability : 1000 Piece/Pieces per Month
MOQ : 2 pieces
Price : $229.00/pieces 2-9 pieces
Product type | 24V 100AH |
Battery Type | LiFePO4 |
Nominal Voltage | 25.6V DC |
Capacity | 100Ah, 2560Wh @C2, 25℃ |
Operating Voltage Range | 20V DC-28.8V DC |
Cycle Life @ 80% DOD | >4000 Cycles(80% DOD @C2, 25℃) |
Dimensions | 330mm(L)x16mm(W)x173mm(T) |
Serialization | 8S1P |
Weight | 20kgs |
Charge Current | 100A Continuous |
Discharge Current | 100A Continous |
Charging Shut-off Voltage | 20V |
Discharging Limit Voltage | 218.8V |
Over-current Protection | 200A, 10s Dela |
Charging Under/Over Temp Protection | 0℃/55℃ |
Discharging under/over Temp Protection | -20℃/60℃ |
Balance Current | ≤200mA |
Self-Discharge Rate | <3% Per Month |
![]() |

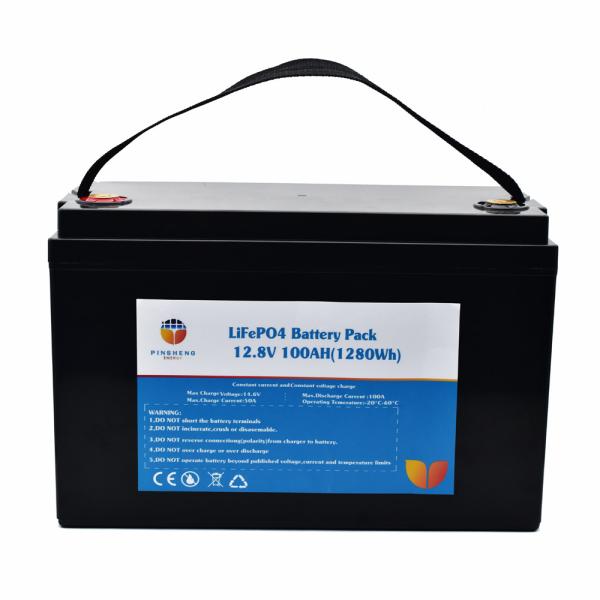

hot selling low price 12V lithium ion battery 100AH Images |
